2004 Toyota Tundra High Beam Indicator Not Working

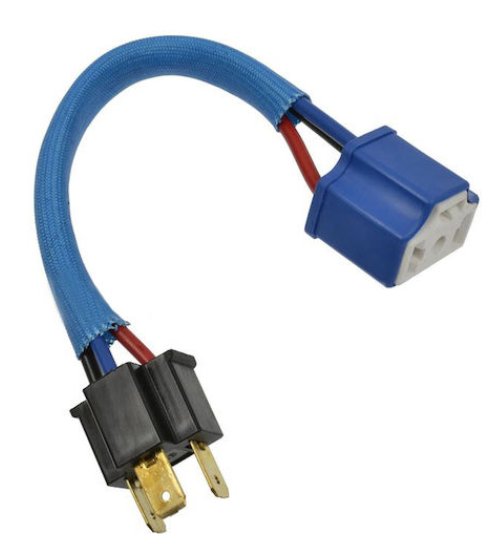

I bought and installed a Motorcycle Headlight Load Resistor - H4 LED Headlight Bulbs to help with the electrical resistance. The high mount stop lamp does not work but the stop lamps work fine.
Headlights Not Working Except For Manual Flash Of High Beams Yotatech Forums
The stop lights do not work but the high mount stop lamp works.
2004 toyota tundra high beam indicator not working. I cured the problem by connecting one of the halogen bulbs in parallel with one of the LED lamps. A Toyota Tundra Double Cab. Checking and Replacing Fuses The fuses are designed to blow before the entire wiring harness is damaged.
For a period of time an incorrect lubricant was used. Anything else i should check. Premature Front Lower Ball Joint Wear.
A single stoplight in burned out but the rear. On a vehicle with a rear spoiler. You only need one and I installed mine on the passenger side.
10122018 After passing the oncoming car rather than the high beams turning back on the AHB indicator light turns off and the AHB system is deactivated for an amount of time between 45 seconds and 2 minutes. One for low beams one for high beams. To diagnose if it is your Motocontrol relay you could always plug a factory bulb in the empty side not connected to anything and see if the high beam goes on.
Ground from bodybatt and ground at socket are not common. This can happen if greasy fingerprints cause part of the bulb to heat unevenly breaking it. This condition is present in all driving conditions whether stationary or in motion.
This lubricant failed quickly which lead to premature ball joint wear. You would have to add a small light bulb or resistor between the redwhite and redgreen left headlight wires or redblue and redgreen right headlight wires. Here you will find fuse box diagrams of Toyota Tundra 2004 2005 and 2006 get information about the location of the fuse panels inside the car and learn about the assignment of each fuse fuse layout and relay.
2000-2006 Toyota Tundra - Common Problems. Posted by andre rioux on Mar 15 2012. Wiring from relay to fog lights is good.
15032012 2004 tundra fog lights do not turn on. The AHB system will eventually be reactivated without any. High beam not working.
Is there a relay or something that may have gone bad. Basic instruments are not clear and require that the driver be distracted much longer than is acceptable to try to read the dark instrument cluster. 20102009 The steering column cover splits in half the upper half in the lower half.

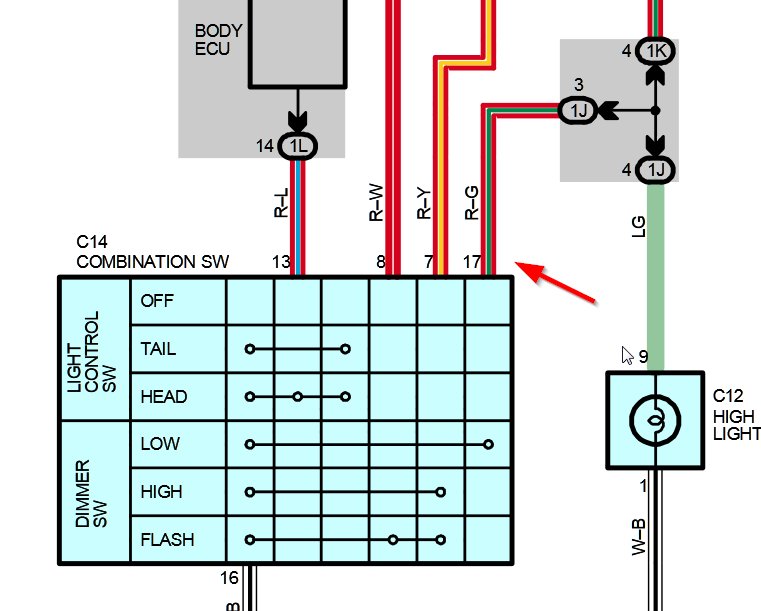

Relay has been interchanged. I dont have complete faith in these schematics as they dont seem to show the High Beam switch but if you bypass B5 on Connecter B of the Dimmer Switch you may find your High Beams will work. 31082019 When I 1st installed them my foglights would not work and only the high beam side of the headlights was working.
04042017 If all your fuses are good I would check the connections on your Motocontrol harness. Behind the steering wheel and you will have to turn the wheel 180. 18032017 the low beam headlights as well as the high beam indicator on the dash on my 2004 tundra sr5 double cab do not work.
29102016 Discussion Starter. 24052019 Didnt I just replace that high beam bulb you say as the high beams fail yet again. In this article we consider the first-generation Toyota Tundra XK30XK40 Double Cab produced from 2004 to 2006.
14022020 When low beams are on the headlight switch directly grounds the low beam filament and the voltage difference across the high beam indicator in zero so its off. 27012021 The dash instrument and gauge lights do not work during daytime when lights are set to automatic. On a vehicle with a rear spoiler.
At a time remove the two Philips screws. Replacing light turn signal wiper combination switch on 92 Toyota Hilux. The connection to your factory headlight wiring and the ground.
If you have this problem only with one headlight I believe this is the reason. 16012016 The high beam indicator gets power through the headlight. I have no idea what size resistor you would have to use.
The front lower ball joint is lubricated at the factory. Trace in BLUE the portion of the circuit below that could be at fault. The LED lights wont complete the circuit.
This adds some resistance to the circuit and everything works. 02082006 It appears if the HEAD LIGHT CONTROL RELAY was Inop then the lights wouldnt work at all. Trace in GREEN the portion of the circuit below that could be at fault.
The TSB mentioned previously states that in rare cases when the High Beam Indicator Light does not illuminate it can be repaired by making a modification to the wiring harness and replacement of the Body ECU. On the bottom side there is one single Philips group that goes up through the lower half into the steering column remove that screw. 12v from light switch low beam to relay socket is good.
I imagine that you use low beams most of the time so the corresponding filament burned out sooner. If you bypass it and it works then replacing the Dimmer switch should solve. 07112017 The high beam indicator light wasnt working properly.
Fog light fuse is good. Fuse box diagram fuse layout location and assignment of fuses and relays Toyota Tundra Double Cab 2004 2005 2006. With headlight switch is in high beam position low beam filament is no longer grounded and current runs through low beam filament then through the high beam indicator light.
Most modern headlight bulbs have two filaments in the same glass enclosure. High beam indicature not working If your high beams work fine then all you need to do is pull out the instrument cluster and install a new light bulb if all you want is to see the blue light indicator. If you have multiple headlight bulb failures make sure you are especially clean when doing the job.
After installation my led headlights and led fogs work flawless. Bulbs are good.
Hi Beam Indicator Fix Toyota Tacoma Forum
High Beam Indicator What Triggers It Toyota 4runner Forum Largest 4runner Forum
